Brand Name : TISCO BAOSTEEL JISCO
Model Number : 1.4301 316 310S 321 2205
Place of Origin : China
MOQ : 1 TON
Price : Negotiable
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 5000 Ton Per Month
Delivery Time : 10 days
Packaging Details : Standard export packaging
Application : Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe
Section Shape : Round
Thickness : 2.11-300mm
Length : 12M, 6m, 6.4M
Shape : Round Pipe Tube
Packing : Standard Seaworthy Package
Payment terms : 30%TT Advance + 70% Balance
Processing Service : Welding, Punching, Cutting, Bending, Decoiling
Product Description:
Stainless steel pipes are available in various grades, such as 304, 316, 321, and others. These grades have different compositions and properties, enabling them to meet specific requirements for different applications. The selection of the appropriate grade depends on factors such as the environment, temperature, and the nature of the conveyed fluids or gases.
It's important to consider factors like pipe size, wall thickness, and connection methods when choosing stainless steel pipes for a particular application. Compliance with industry standards and regulations is also crucial to ensure the safety and performance of the pipes in their intended use.
Steel Grade | 200 Series 300 Series 400 Series 600 Series |
Application | handrail ,fence, furniture |
Welding Line Type | ERW |
Tolerance | ±1% |
Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
Grade | 200 Series 300 Series 400 Series |
Section Shape | Round |
Alloy Or Not | Non-Alloy |
Steel Grade | 301L, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L, 441, 316, 420J1, 321, 410S, 410L, 436L, S32304, 314, 347, 430, 309S, 304, 204C2, 425M, 409L, 420J2, 445, 304L, 405, 370, S32101, 301LN, 429, 304J1, 317L |
Surface Finish | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
Invoicing | by theoretical weight |
Delivery Time | 8-14 days |
Shape | Round Pipe Tube |
Product name | Stainless Steel Tubing |
Material Grade | 201/202/302/304/304L/310/314/314L/316/316L/430/409/321 |
Thickness | 0.3-30mm |
Customized Service | Demand Customization |
Application Fields | Construction Industry |
Outer Diameter | 2mm, 6-630mm |
Steel Grade | 600 Series, 301, 316, 430, 304, 201 |
measurement | by theoretical weight |
Product type | Polished Seamless Stainless Round Tubes |
Features:
1. Our stainless steel tubes pipes are treated by bright annealing, inside weld bead removing, precise polishing. The roughness of
tubes could be under 0.3μm.
2. We have the non destructive testing ( NDT ), eg. online eddy current inspection and hydraulic or airtightness testing.
3. Thick welding, good appearance.The mechanical properties of tube could be tested.
4. The raw material is from Taigang, Baogang, Zhangpu and so on.
5. And Our tubes are certificated by AD 2000-W0, PED 2014/68/EU, ISO 9001 : 2015.
6. Full material traceability is guaranteed during the manufacturing process.
7. Polished tube is supplied in individual plastic sleeves with capped ends ensuring optimum cleanliness.
8. Internal Bore: Tubes have a smooth, clean and crevice free bore.
9. Market leading quality products.
Chemical Composition | Mechanical Character | ||||||||||
Grade | C | Si | Mn | P | S | Ni | Cr | Mo | Cu | N | Hardness |
304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20. 00 | – | – | – | HB≤187, HRB≤90, HV≤200 |
316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14. 00 | 16.00-18. 00 | 2.00-3.00 | – | – | HB≤187, HRB≤90, HV≤200 |
316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 10.00-14. 00 | 16.00-18. 00 | 2.00-3.00 | – | – | HB≤187, HRB≤90, HV≤200 |
304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 10.00-14. 00 | 16.00-18. 00 | – | – | – | HB≤187, HRB≤90, HV≤200 |
![]() |

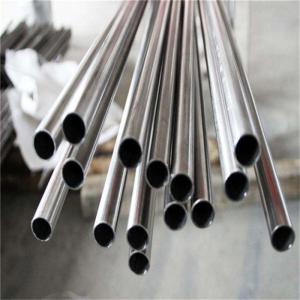

304 Round Stainless Steel Pipe seamless Stainless Steel Pipe/Tube Images |
